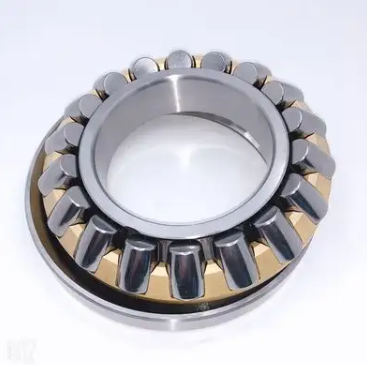

Thrust roller bearing 29417M

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.

High load carrying capacity

Can accommodate combined loads

Allow misalignment or create very stiff bearing arrangements

Long service life and low friction

Separable design


Contact Now E-Mail Telephone
Product Details

Thrust roller bearing 29417M

Thrust roller bearing 29417M

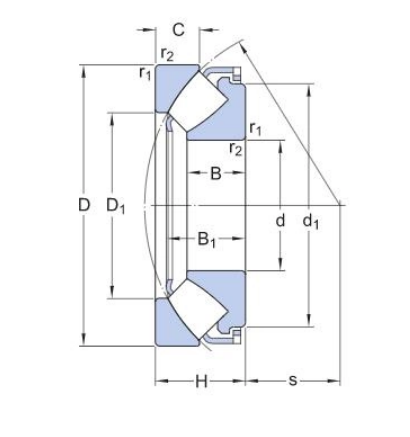

Dimensions



85 mm

Bore diameter

180 mm

Outside diameter

58 mm

Height

≈155 mm

Outside diameter of shaft washer end side face

≈121 mm

Shoulder diameter outer ring

37 mm

Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage)

51.1 mm

Height shaft washer + cage

28 mm

Height housing washer

54 mm

Distance from shaft washer end side face to pressure point

min.2.1 mm

Chamfer dimension shaft washer






The bearing is designed to help excessive axial hundreds and can additionally guide restrained radial loads. It is frequently used in functions that require excessive speed, such as in the aerospace, automotive, and heavy tools industries. The M suffix in the mannequin wide variety shows that the bearing has a machined brass cage, offering elevated power and sturdiness in contrast to different cage materials.
Overall, the 29417M thrust curler bearing is a robust and dependable element that can be used in a vast vary of functions the place axial masses want to be supported.
